Advanced Instrumentation Solutions for the Metallurgy & Mining Industry
Industrial-grade instrumentation solutions designed for reliable and accurate measurement under high-temperature, high-pressure, and abrasive conditions. From ore extraction to smelting and emission monitoring, advanced transmitters and analyzers ensure safe, efficient, and data-driven operations throughout the mining and metals value chain.
Addressing the Core Challenges of Metallurgy & Mining Process Control
The metallurgy and mining industry operates under extreme temperature, pressure, abrasion, and corrosion that challenge measurement reliability.Advanced instrumentation focuses on long-term stability, corrosion resistance, and smart communication in demanding process environments.
High Temperature and Corrosive Gases
Smelting furnaces and converters expose instruments to temperatures above 1200 °C and corrosive SO₂ gases.Temperature transmitters and gas analyzers with heat-resistant probes and PTFE-lined sampling systems ensure stable, accurate monitoring under extreme conditions.
Slurry and Solid-Laden Fluids
In beneficiation and mineral processing, slurry measurement is prone to clogging and erosion.Wear-resistant ceramic-lined flow meters and non-intrusive electromagnetic sensing provide reliable readings in abrasive slurry pipelines.
Dust and Vibration Interference
Crushing, screening, and conveying systems generate severe vibration and dust that compromise sensor performance. Pressure and level transmitters with anti-vibration mounts and sealed IP68 housings ensure dependable operation in rugged environments.
Emission and Wastewater Compliance
Metallurgical plants must meet strict air and water emission standards through continuous monitoring.Gas analyzers and level transmitters with smart communication support 24/7 compliance tracking and SCADA/Modbus integration for centralized environmental control.
Instrumentation Applications in Metallurgy & Mining
Across mining and metallurgical operations, reliable instrumentation supports precise monitoring of pressure, flow, temperature, level, and gas composition—ensuring safe and efficient process performance.

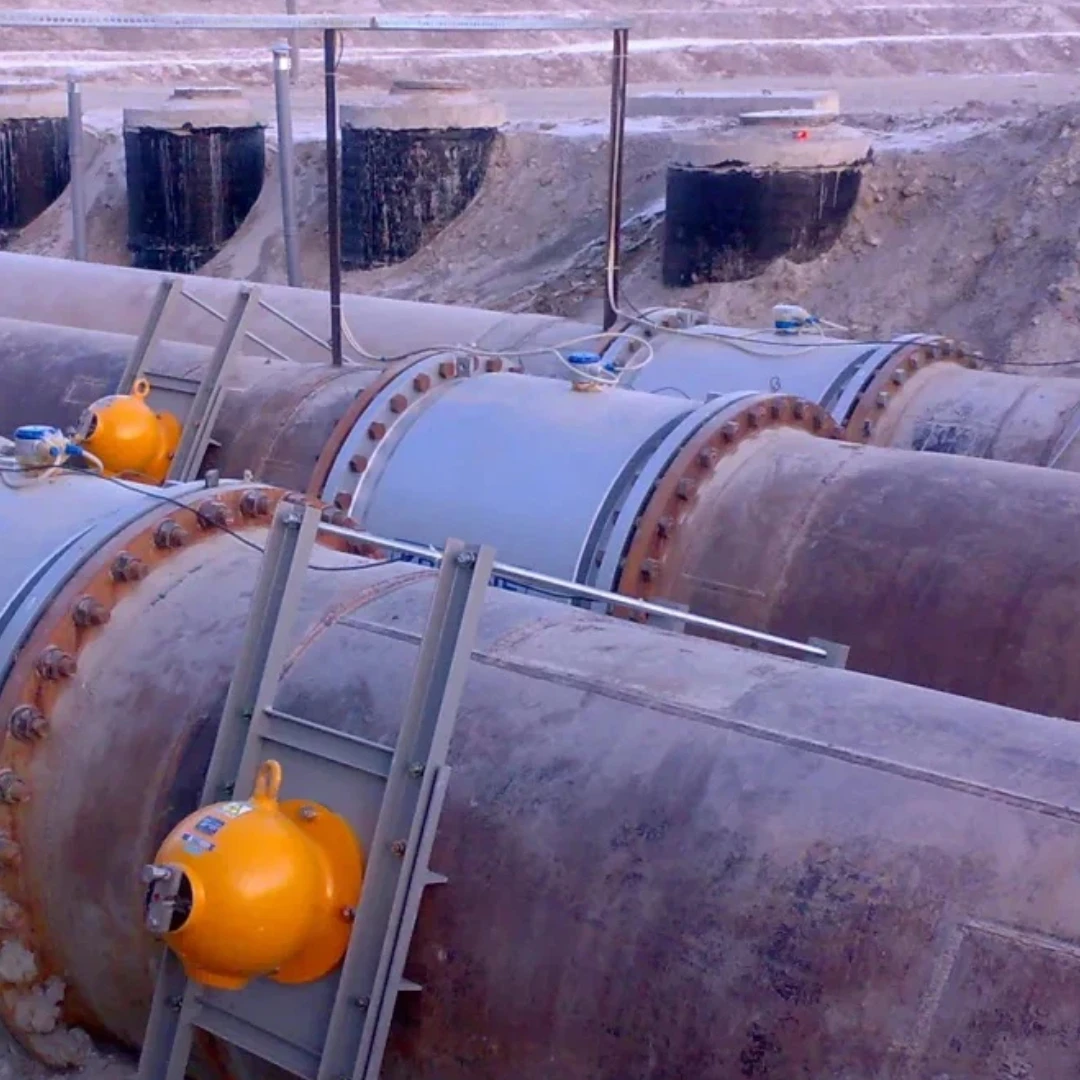

Mining & Ore Extraction
Durable instrumentation ensures safe operation in harsh underground environments. Explosion-proof pressure transmitters and flow sensors monitor compressed air, dewatering, and hydraulic systems with high accuracy.

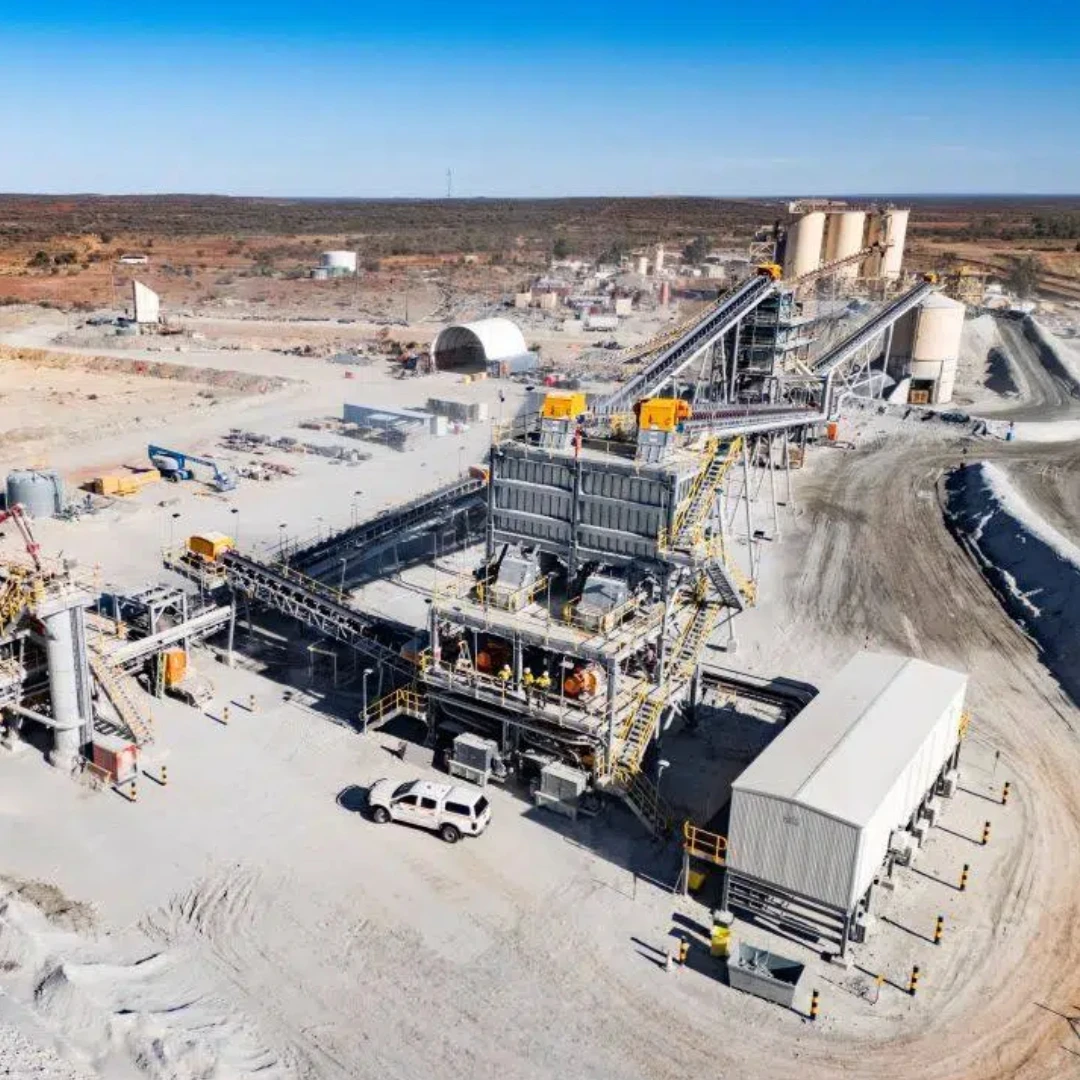

Crushing & Screening
Severe vibration and dust demand robust sensors. Anti-vibration pressure and level transmitters provide reliable monitoring of hoppers, crushers, and conveyors for stable material handling.

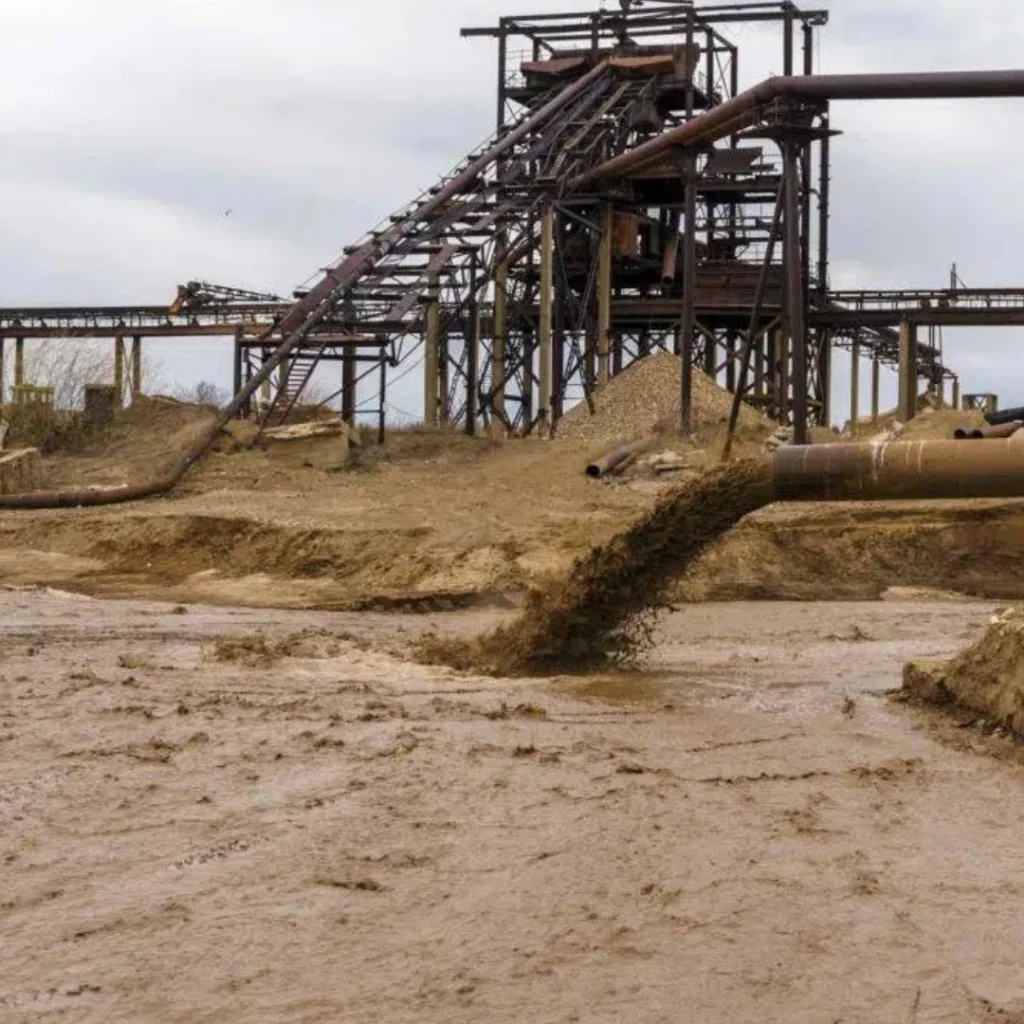

Mineral Processing & Beneficiation
Precise slurry, level, and reagent measurement ensures process stability. Wear-resistant flow meters, radar level transmitters, and analytical sensors optimize separation efficiency and recovery rates.

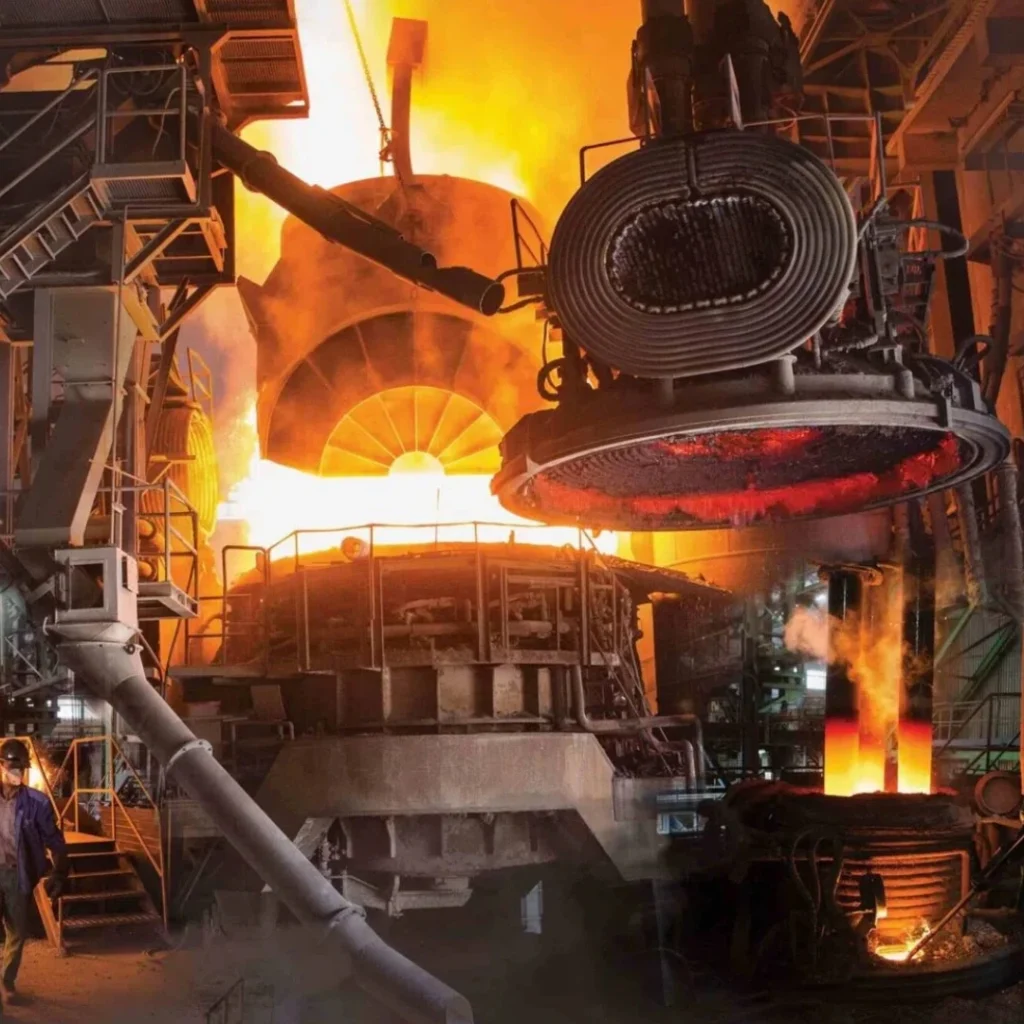

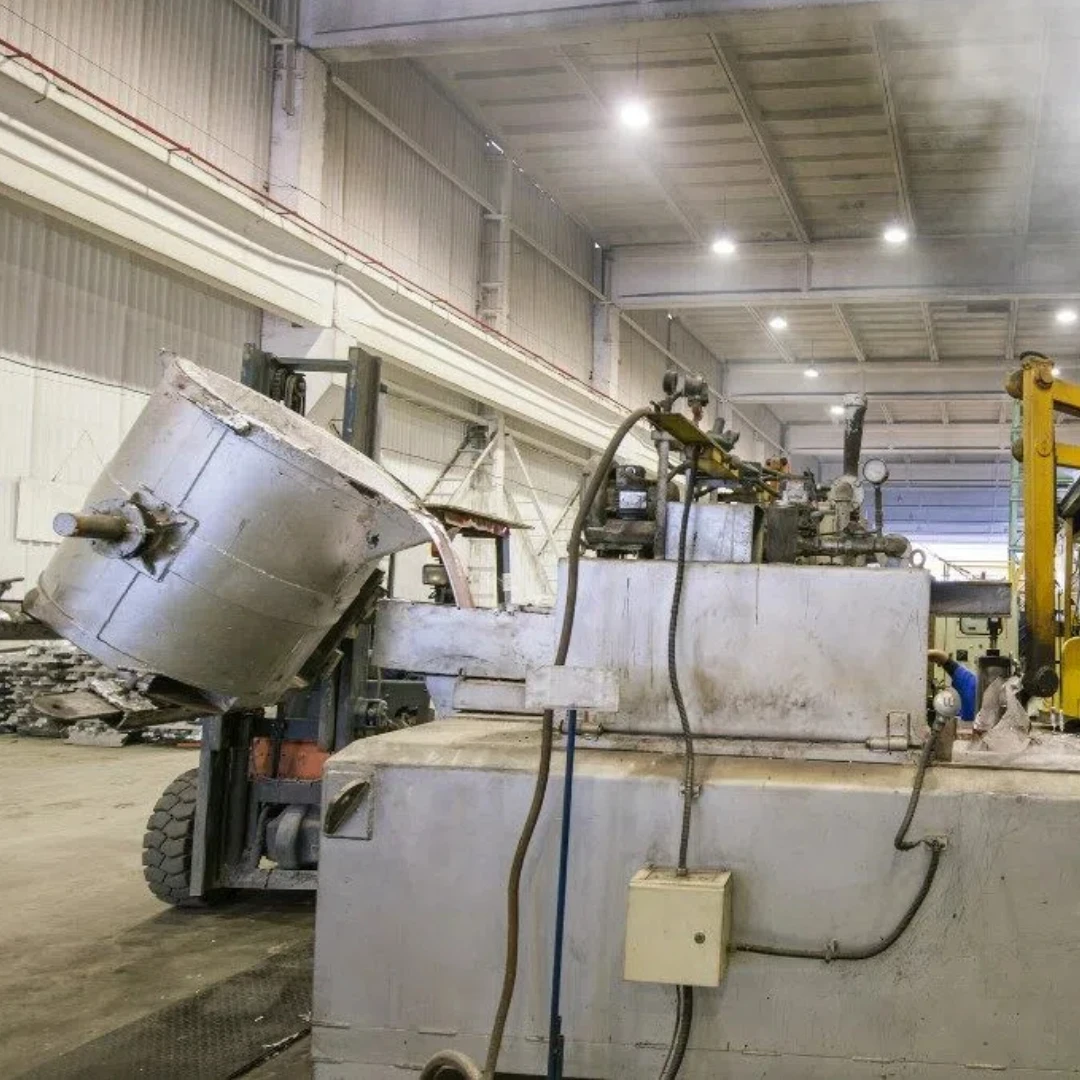

Smelting & Refining
High heat and corrosive gases require precise and durable measurement. Thermocouples and PTFE-lined gas analyzers provide accurate monitoring in furnaces, converters, and flue-gas systems.

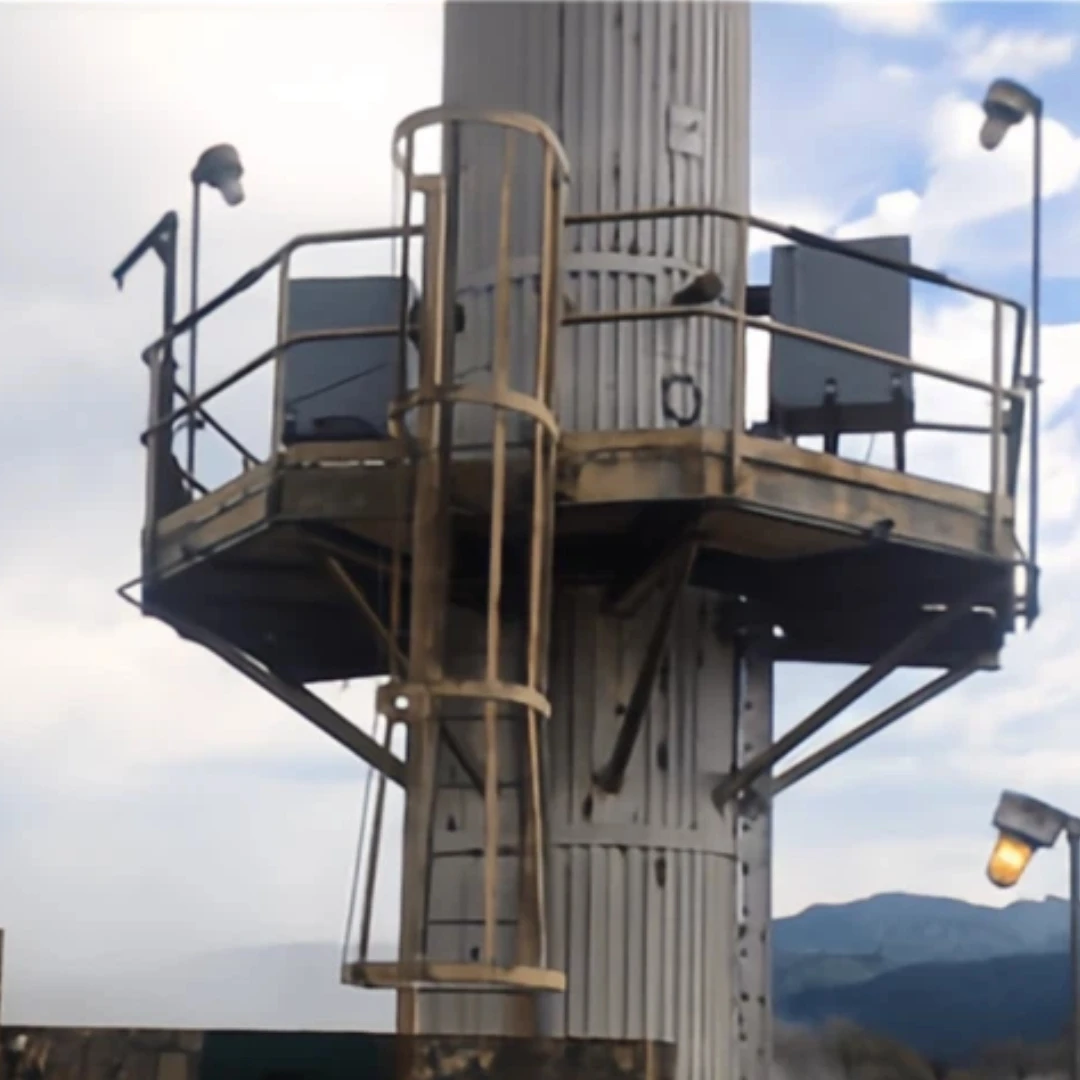

Dust Collection & Gas Emission Control
Continuous monitoring ensures safe and compliant operation. Differential pressure transmitters and gas analyzers track SO₂, NOx, and dust levels for emission control and process optimization.

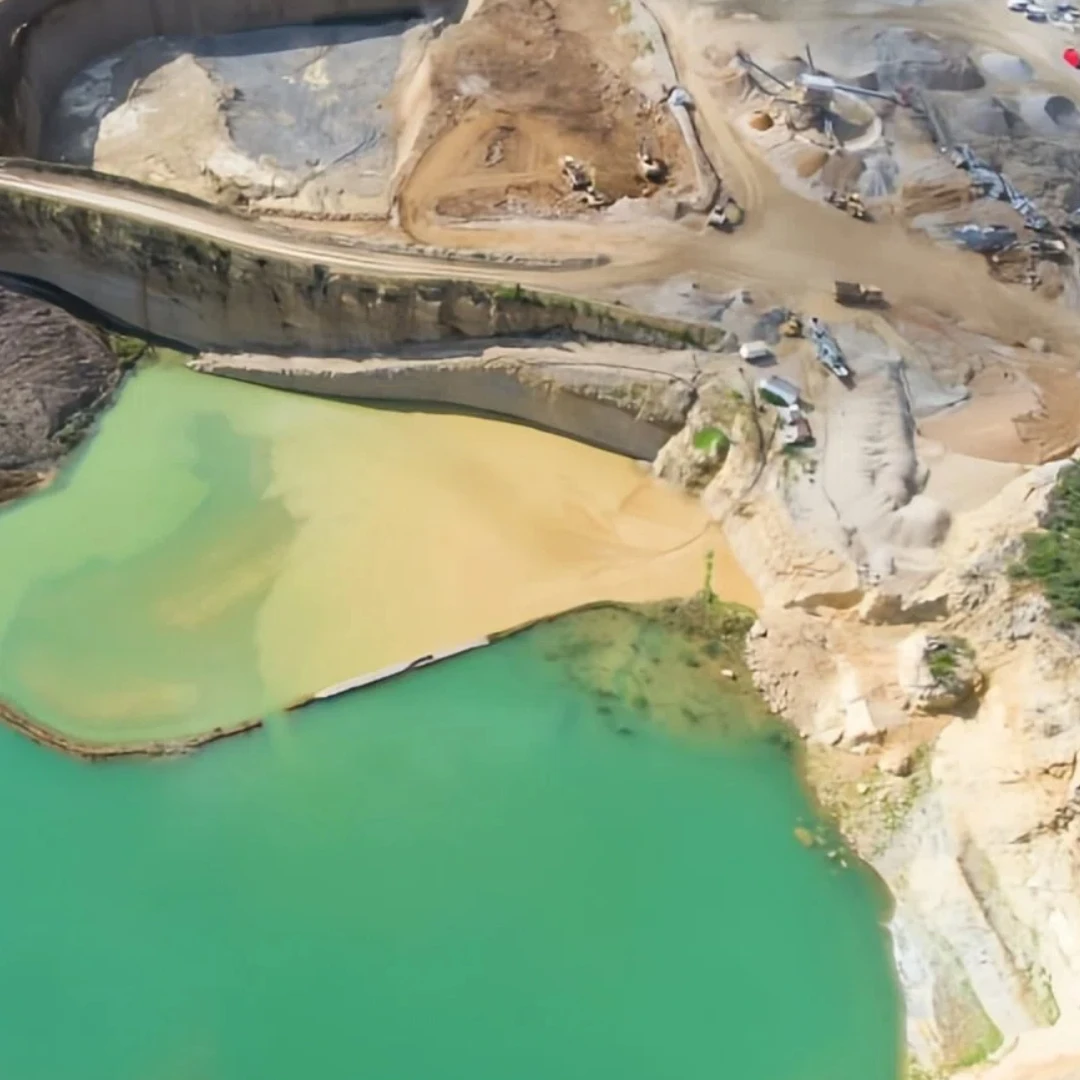

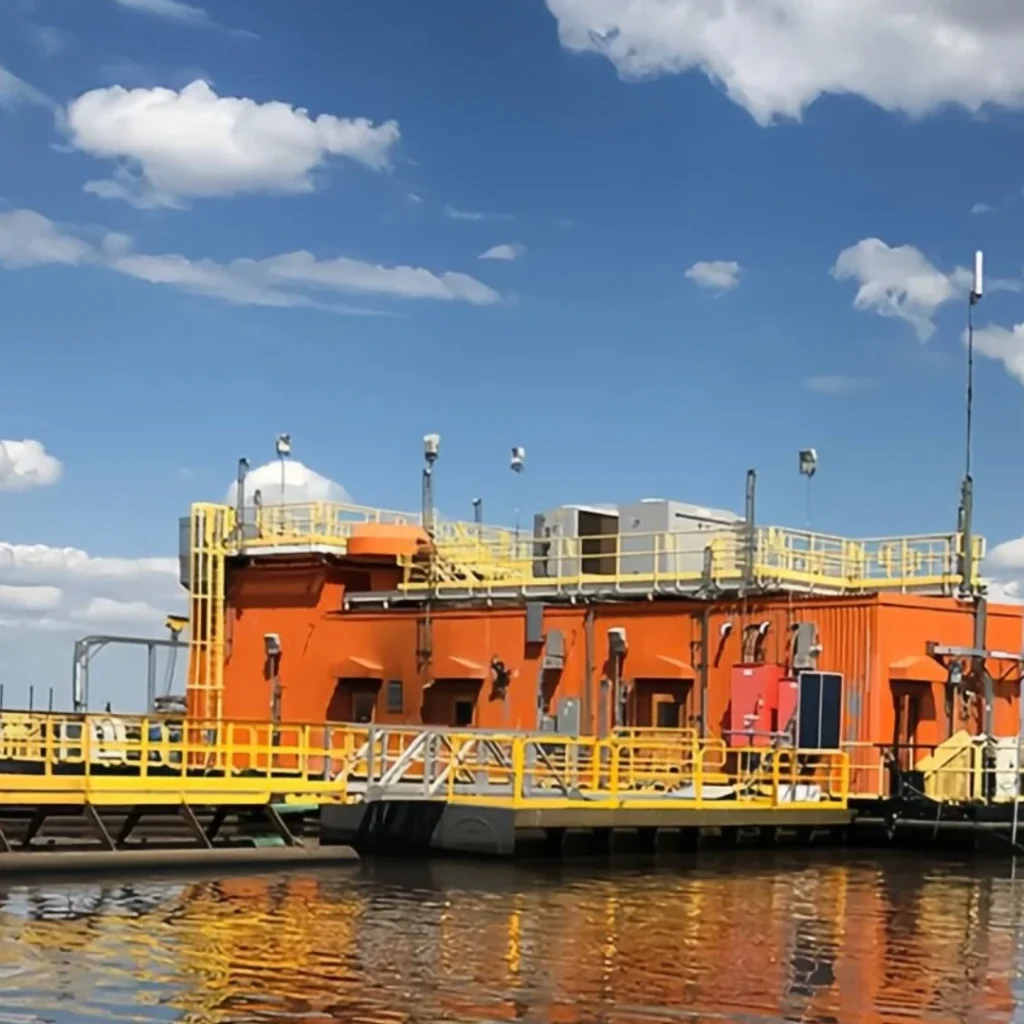

Tailings & Wastewater Treatment
Reliable water and waste monitoring supports safe operation. Level, pH, and conductivity transmitters track turbidity and solids, improving water recovery and environmental compliance.
Process Flow and Instrumentation Layout in Metallurgy & Mining
Metallurgical and mining processes combine mechanical, thermal, and chemical operations that rely on accurate and reliable instrumentation for stable measurement, process safety, and energy efficiency.
Complete Process Instrumentation for Chemical & Petrochemical Operations
Pressure Gauges
Leierda pressure gauges (mechanical pressure measuring instruments) for gauge, absolute, and differential pressure have been proven millions of times across industrial and process applications.
View Product >
Pressure Gauges
Leierda pressure gauges (mechanical pressure measuring instruments) for gauge, absolute, and differential pressure have been proven millions of times across industrial and process applications.
View Product >
Pressure Gauges
Leierda pressure gauges (mechanical pressure measuring instruments) for gauge, absolute, and differential pressure have been proven millions of times across industrial and process applications.
View Product >
Application Engineering
Designed for demanding conditions with high pressure, temperature, and corrosion resistance, Leierda instruments provide customizable pressure, flow, level, and analytical solutions.
System Integration
Fully compatible with DCS, PLC, and SCADA platforms, instruments provide easy I/O setup, validation documentation, and reliable signal performance for chemical, water, and energy systems.
Measurement Integrity
Each unit undergoes multi-stage calibration and stress testing under ISO and CE/Ex standards to ensure long-term accuracy and operational stability in continuous process conditions.
Global Partnership
Engineering teams cooperate with EPCs, integrators, and end users worldwide, offering technical support, training, and lifecycle services to secure process safety and uptime.
Real-World Instrumentation Cases in Metallurgy & Mining
Instrumentation solutions are used in concentrators, smelters, and tailings facilities to improve measurement reliability, process efficiency, and environmental compliance under abrasive, high-temperature, and corrosive conditions.
Slurry Flow Optimization in Beneficiation
Challenge
In mineral beneficiation circuits, slurry pipelines transport ore fines mixed with process water under high solids concentration and strong abrasiveness. Conventional mechanical and magnetic flow sensors often experienced liner wear and signal drift, leading to frequent recalibration and unstable cyclone-feed control.
Solution
An electromagnetic flowmeter with ceramic lining and 316L electrodes was installed on the main slurry line. The smooth, non-conductive ceramic surface minimized erosion and scaling, while the fully welded stainless-steel housing (IP68) ensured continuous operation under vibration and high humidity.
Result
After more than one year of continuous service, the meter maintained accuracy within ±0.5 %, reduced maintenance intervention by roughly 30 %, and stabilized feed-density control—contributing to steadier cyclone separation and mill throughput.
Furnace Gas Analysis in Smelting Operations
Challenge
Non-ferrous smelting furnaces release exhaust gas containing SO₂, CO, and particulates at temperatures above 800 °C. Standard gas sensors degraded rapidly, causing signal instability and delayed feedback in emission-control loops.
Solution
A multi-component gas analyzer with an auto-purge system and PTFE-coated heated sampling probe (≈180 °C) was installed at the furnace outlet. The system included an in-line dust filter, temperature-controlled sampling line, and a HART-enabled transmitter for remote diagnostics. The automatic purge prevented blockage, and corrosion-resistant materials ensured stable readings in acidic, particle-laden gas.
Result
Field data over six months showed signal availability above 95 %, with calibration frequency reduced by about 40–50 % compared to prior sensors. Continuous gas-composition data improved combustion-air control and reduced emission variability, maintaining compliance with local environmental regulations.
Tailings Pond Level and Conductivity Monitoring
Challenge
Tailings ponds store process water and residual slurry with variable conductivity and suspended solids. Manual dip-level checks were slow and inconsistent, raising overflow risk during rainfall events. High chloride content also caused corrosion in conventional probes.
Solution
An 80 GHz non-contact radar level transmitter was installed for continuous surface-level monitoring, paired with a graphite-electrode conductivity analyzer for effluent-quality measurement. Both instruments communicated with the SCADA system via Modbus RTU, enabling real-time trend recording and alarm triggering.
Result
The automated system provided continuous alerts and predictive alarms that prevented overflow during heavy rain. Conductivity monitoring supported better control of water recycling and discharge quality. Manual inspection workload dropped by roughly 50 %, and level-measurement precision improved from ±5 cm to about ±3 mm under stable conditions.
Related Resources
Explore valuable content to gain insights into best practices and critical considerations when working with chemical and petrochemical systems.
Contact Leierda
Reliable instrumentation supports precision, durability, and smart connectivity in metallurgy and mining applications.Collaborate with our engineering team to enhance process stability, operational safety, and environmental compliance across your production process.
